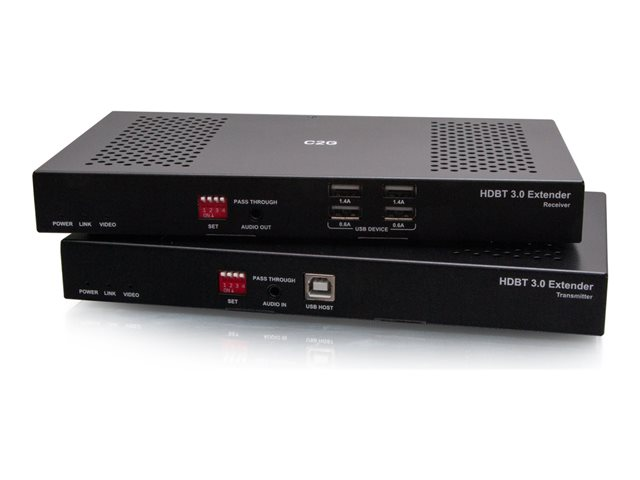

C2G HDMI HDBaseT + USB-B to A + RS232 Over Cat Extender Box TX to Box RX (18Gbps) 4K 60Hz up to 328ft

Video/lyd/USB/nettverksutvider - HDMI, HDBaseT - USB - opp til 100 m
Ikke på lager
Produsent C2G
Artnr C2G30055
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    The HDMI HDBaseT + USB-B to A and RS232 over Cat Extender (18 Gbps) allows for the extension of a 4K HDMI source up to 328 feet to a 4K display without signal loss using a single Cat6a Ethernet cable. This is an ideal solution where USB must also be extended alongside HDMI video and audio to interactive whiteboards and displays or in any installation that goes far beyond the length limitations of standard HDMI and USB cabling.

    This HDMI HDBaseT 3.0 kit supports 5Play features, including the combined delivery of uncompressed ultra-high-definition digital video and audio, Ethernet, control signals, USB 2.0, and up to 100 W of power through a single, 100 m/328 feet Cat6a LAN cable. The uncompressed digital video fully supports 4K 60 Hz (4:4:4) HDMI signals and all audio formats in the HDMI specification. The Ethernet pass-through transmits 1 GB of data. The featured dip switch allows for RS232 pass-through and the added convenience of field firmware updating. USB 2.0 supports streaming cameras, connected peripherals, and storage devices. With one-way Power over HDBaseT (PoH) support, one power adapter connected to the receiver powers both the transmitter and receiver, so no additional power adapter required, allowing for greater flexibility in installations.
