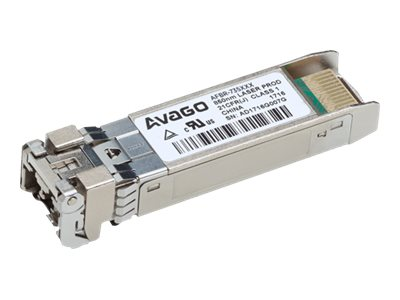

Avago AFBR-735SMZ - SFP28-transceivermodul

25GbE - 25GBase-SR - LC multimodus - opp til 100 m - 850 nm
Ikke på lager
Produsent Brocade
Artnr AFBR-735SMZ
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    • Compliant to RoHS directives
    • 850 nm Vertical Cavity Surface Emitting Laser (VCSEL)
    • Class 1 eye safe per IEC60825-1 and CDRH
    • Wide temperature range (0°C to 70°C)
    • LC duplex connector optical interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A)
    • Diagnostic features per SFF-8472 ""Diagnostic Monitoring Interface for Optical Transceivers""
    • Enhanced operational features including variable electrical EQ/emphasis settings
    Avago Technologies' AFBR-735SMZ optical transceiver supports high speed serial links over multi-mode optical fiber at 25.78 Gb/s (the serial line rate of 25GE). The product is compliant with Small Form Pluggable industry agreements SFP and SFP28 for mechanical and low speed electrical specifications. High speed electrical and optical specifications are compliant with IEEE 802.3 for 25GBASE-SR and 10GBASE-SR.

    The AFBR-735SMZ is a 850 nm transceiver which ensures compliance with 25GBASE-SR specifications. Per the requirements of 25GE, internal clock and data recovery circuits (CDRs) are present on both electrical input and electrical output of this transceiver. These CDRs will lock at 25.78Gb/s but must be bypassed for 10GBASE-SR operation using two Rate Select inputs.

    Digital diagnostic monitoring information (DMI) is present in the AFBR-735SMZ per the requirements of SFF-8472, providing real time monitoring information of transceiver laser, receiver and environment conditions over a SFF-8419 2-wire serial interface.
